Statements Page

On this page Carat arrow pointing down
Warning:
CockroachDB v21.1 is no longer supported as of November 18, 2022. For more details, refer to the Release Support Policy.
Note:

On a secure cluster, this area of the DB Console can only be accessed by an admin user. See DB Console access.

The Statements page helps you:

To view this page, access the DB Console and click Statements in the left-hand navigation.

Search and filter by application

By default, this page shows SQL statements from all applications running on the cluster, including internal CockroachDB queries.

To filter the statements by application_name, use the App menu. If you haven't set application_name in the client connection string, it appears as unset.

CockroachDB's internal queries are displayed under the (internal) app. Queries from the SQL shell are displayed under the $ cockroach sql app.

You can also search for statements using the search bar.

Understand the Statements page

Use this page to identify SQL statements that you may want to troubleshoot. This might include statements that are experiencing high latencies, multiple retries, or execution failures. You can optionally create and retrieve diagnostics for these statements.

Tip:

If you haven't yet executed any queries in the cluster as a user, this page will initially be blank.

Columns Description
Statement SQL statement fingerprint.

To view additional details, click the SQL statement fingerprint to open its Statement Details page.
Execution Count Cumulative number of executions of statements with this fingerprint within the last hour or specified time interval.

The bar indicates the ratio of runtime success (gray) to retries (red) for the SQL statement fingerprint.
Rows Read Average number of rows read from disk while executing statements with this fingerprint within the last hour or specified time interval.

The gray bar indicates the mean number of rows returned. The blue bar indicates one standard deviation from the mean.
Bytes Read Aggregation of all bytes read from disk across all operators for statements with this fingerprint within the last hour or specified time interval.

The gray bar indicates the mean number of bytes read from disk. The blue bar indicates one standard deviation from the mean.
Statement Time Average planning and execution time of statements with this fingerprint within the last hour or specified time interval.

The gray bar indicates the mean latency. The blue bar indicates one standard deviation from the mean.
Contention Average time statements with this fingerprint were in contention with other transactions within the last hour or specified time interval.

The gray bar indicates mean contention time. The blue bar indicates one standard deviation from the mean.
Max Memory Maximum memory used by a statement with this fingerprint at any time during its execution within the last hour or specified time interval.

The gray bar indicates the average max memory usage. The blue bar indicates one standard deviation from the mean.
Network Amount of data transferred over the network (e.g., between regions and nodes) for statements with this fingerprint within the last hour or specified time interval.

If this value is 0, the statement was executed on a single node.

The gray bar indicates the mean number of bytes sent over the network. The blue bar indicates one standard deviation from the mean.
Retries Cumulative number of retries of statements with this fingerprint within the last hour or specified time interval.
Diagnostics Option to activate diagnostics for this fingerprint. If activated, this displays the status of diagnostics collection (WAITING FOR QUERY, READY, OR ERROR). When READY, the most recent diagnostics bundle can be downloaded here. Access the full history of diagnostics for the fingerprint in the Statement Details page.

Time interval

By default, the Statements page displays all SQL statements executed within a one-hour time interval. The display is cleared at the end of each interval. You can change the interval with the diagnostics.reporting.interval cluster setting.

SQL statement fingerprints

The Statements page displays SQL statement fingerprints.

A statement fingerprint represents one or more SQL statements by replacing literal values (e.g., numbers and strings) with underscores (_). This can help you quickly identify frequently executed SQL statements and their latencies.

For multiple SQL statements to be represented by a fingerprint, they must be identical aside from their literal values:

  • INSERT INTO new_order(product_id, customer_id, transaction_id) VALUES (380, 11, 11098)
  • INSERT INTO new_order(product_id, customer_id, transaction_id) VALUES (192, 891, 20)
  • INSERT INTO new_order(product_id, customer_id, transaction_id) VALUES (784, 452, 78)

The above SQL statements have the fingerprint:

INSERT INTO new_order(product_id, customer_id, no_w_id) VALUES (_, _, _)

The following statements cannot be represented by the same fingerprint:

  • INSERT INTO orders(product_id, customer_id, transaction_id) VALUES (380, 11, 11098)
  • INSERT INTO new_order(product_id, customer_id, transaction_id) VALUES (380, 11, 11098)
  • INSERT INTO new_order(product_id, customer_id, transaction_id) VALUES ($1, 11, 11098)
  • INSERT INTO new_order(product_id, customer_id, transaction_id) VALUES ($1, $2, 11098)
  • INSERT INTO new_order(product_id, customer_id, transaction_id) VALUES ($1, $2, $3)

It is possible to see the same fingerprint listed multiple times in the following scenarios:

  • Statements with this fingerprint were executed by more than one application_name.
  • Statements with this fingerprint were executed both successfully and unsuccessfully.

Statement Details page

Click on a SQL statement fingerprint to open Statement Details. For each statement fingerprint, the details include:

Overview

The Overview section displays the SQL statement fingerprint and essential statistics on the right-hand side of the page:

  • Statement Time is the cumulative time taken to execute statements with this fingerprint within the specified time interval.
  • Planning Time is the cumulative time taken by the planner to create an execution plan for statements with this fingerprint within the specified time interval.
  • Execution time is the cumulative time taken to execute statements with this fingerprint in the specified time interval.

Resource usage displays statistics about storage, memory, and network usage for the SQL statement fingerprint.

  • Mean rows/bytes read displays the mean average number of rows and bytes read from the storage layer for statements with this fingerprint within the last hour or specified time interval.
  • Max memory usage displays the maximum memory used by a statement with this fingerprint at any time during its execution within the last hour or specified time interval.
  • Network usage displays the amount of data transferred over the network (e.g., between regions and nodes) for statements with this fingerprint within the last hour or specified time interval.

    If this value is 0, the statement was executed on a single node.
  • Max scratch disk usage displays the maximum amount of data spilled to temporary storage on disk while executing statements with this fingerprint within the last hour or specified time interval.

Statement details displays information about the execution of the statement.

  • App displays the name specified by the application_name session setting.
  • Failed? indicates whether the statement failed to execute.
  • Used cost-based optimizer? indicates whether the execution used the cost-based optimizer.
  • Distributed execution? indicates whether the execution was distributed.
  • Vectorized execution? indicates whether the execution used the vectorized execution engine.
  • Transaction type displays the type of transaction (implicit or explicit).

Execution counts displays execution statistics for the SQL statement fingerprint.

  • First Attempts is the cumulative number of first attempts at executing statements with this fingerprint within the specified time interval.
  • Total executions is the total number of executions of statements with this fingerprint. It is calculated as the sum of first attempts and retries.
  • Retries is the cumulative number of retries of statements with this fingerprint within the specified time interval.
  • Max Retries is the highest number of retries of a single statement with this fingerprint within the specified time interval. For example, if three statements with the same fingerprint had to be retried 0, 1, and 5 times, then the Max Retries value for the fingerprint is 5.

Rows Affected displays statistics on rows returned for the SQL statement fingerprint.

Diagnostics

The Diagnostics section of the Statement Details page allows you to activate and view diagnostics for the SQL statement fingerprint.

When you activate diagnostics for a fingerprint, CockroachDB waits for the next SQL query that matches this fingerprint to be run on any node. On the next match, information about the SQL statement is written to a diagnostics bundle that you can download. This bundle consists of statement traces in various formats (including a JSON file that can be imported to Jaeger), a physical query plan, execution statistics, and other information about the query. The bundle contents are identical to those produced by EXPLAIN ANALYZE (DEBUG).

Tip:

Diagnostics will be collected a maximum of N times for a given activated fingerprint where N is the number of nodes in your cluster.

Warning:
Statement bundles can contain unredacted user data including histograms and placeholders that contain real data samples, statements that have real data, and database schema which could be sensitive. Be careful when generating and sharing statement bundles.

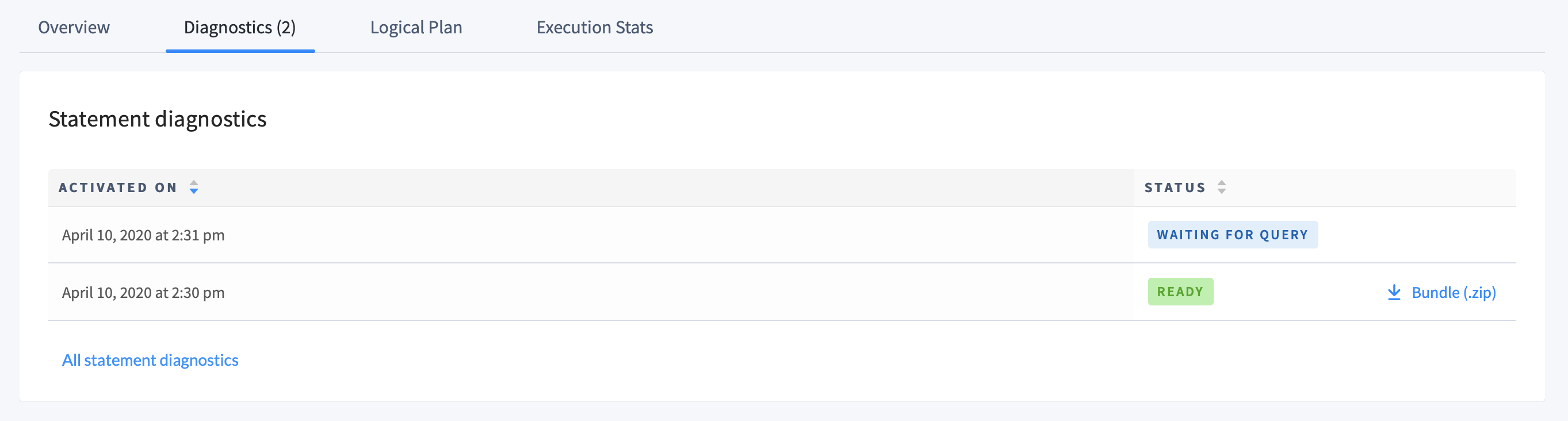

DB Console Statements Page

  • Click the Activate button to begin collecting diagnostics for the fingerprint. This will open the list of Statement diagnostics with a status next to each activated diagnostic.
    • WAITING FOR QUERY indicates that a SQL statement matching the fingerprint has not yet been recorded.
    • ERROR indicates that the attempt at diagnostics collection failed.
    • READY indicates that the diagnostics have run and can be downloaded. A download link will appear beside the status.
  • For any row with a READY status, click Bundle (.zip) to retrieve the diagnostics.

The information collected in the bundle can be used to diagnose problematic SQL statements, such as slow queries. We recommend that you share the diagnostics bundle with our support team, which can help you interpret the results. You can also import trace-jaeger.json into Jaeger to visualize the statement traces.

Click All statement diagnostics to view a complete history of your collected diagnostics, each of which can be downloaded. Although fingerprints are periodically cleared from the Statements page, all diagnostics bundles are preserved. If you need to access diagnostics that were collected for a fingerprint not present in the past interval, you can find the bundle here.

Logical Plan

The Logical Plan section displays CockroachDB's query plan for an explainable statement. You can use this information to optimize the query. For more information about logical plans, see EXPLAIN.

By default, the logical plan for each fingerprint is sampled every 5 minutes. You can change the interval with the sql.metrics.statement_details.plan_collection.period cluster setting. For example, to change the interval to 2 minutes, run the following SET CLUSTER SETTING command:

icon/buttons/copy
> SET CLUSTER SETTING sql.metrics.statement_details.plan_collection.period  = '2m0s';

Execution Stats

Execution Latency by Phase displays the service latency of statements matching this fingerprint, broken down by phase (parse, plan, run, overhead), as well as the overall service latency. The gray bar indicates the mean latency. The blue bar indicates one standard deviation from the mean.

Tip:

"Overhead" comprises the statements that remain after subtracting parse, plan, and run latencies from the overall latency. These might include fetching table descriptors that were not cached, or other background tasks required to execute the query.

Note:

Service latency can be affected by network latency, which is displayed for your cluster on the Network Latency page.

Other Execution Statistics displays the following statistics.

Statistic Description
Rows Read The number of rows read by the statement. The gray bar indicates the mean number of rows read. The blue bar indicates one standard deviation from the mean.
Disk Bytes Read The size of the data read by the statement. The gray bar indicates the mean number of bytes read. The blue bar indicates one standard deviation from the mean.

The Statistics by Node table provides a breakdown of the number of statements of the selected fingerprint per gateway node. You can use this table to determine whether, for example, you are executing queries on a node that is far from the data you are requesting (see Optimize Statement Performance).
