Performance Benchmarking with TPC-C

On this page Carat arrow pointing down

This page shows you how to reproduce CockroachDB TPC-C performance benchmarking results. Across all scales, CockroachDB can process tpmC (new order transactions per minute) at near maximum efficiency. Start by choosing the scale you're interested in:

Workload Cluster size Warehouses Data size
Local 3 nodes on your laptop 10 2 GB
Local (multi-region) 9 in-memory nodes on your laptop using cockroach demo 10 2 GB
Small 3 nodes on c5d.4xlarge machines 2500 200 GB
Medium 15 nodes on c5d.4xlarge machines 13,000 1.04 TB
Large 81 nodes on c5d.9xlarge machines 140,000 11.2 TB

Before you begin

Review TPC-C concepts

TPC-C provides the most realistic and objective measure for OLTP performance at various scale factors. Before you get started, consider reviewing what TPC-C is and how it is measured.

Request a trial license

Reproducing these TPC-C results involves using CockroachDB's partitioning feature to ensure replicas for any given section of data are located on the same nodes that will be queried by the load generator for that section of data. Partitioning helps distribute the workload evenly across the cluster.

The partitioning feature requires an Enterprise license, so request a 30-day trial license before you get started.

You should receive your trial license via email within a few minutes. You'll enable your license once your cluster is up-and-running.

Step 1. Set up the environment

Provision VMs

  1. Create 86 VM instances, 81 for CockroachDB nodes and 5 for the TPC-C workload.

    • Create all instances in the same region and the same security group.
    • Use the c5d.9xlarge machine type.
    • Use local SSD instance store volumes. Local SSDs are low latency disks attached to each VM, which maximizes performance. This configuration best resembles what a bare metal deployment would look like, with machines directly connected to one physical disk each. We do not recommend using network-attached block storage.
  2. Note the internal IP address of each instance. You'll need these addresses when starting the CockroachDB nodes.

Warning:

This configuration is intended for performance benchmarking only. For production deployments, there are other important considerations, such as security, load balancing, and data location techniques to minimize network latency. For more details, see the Production Checklist.

Configure your network

CockroachDB requires TCP communication on two ports:

  • 26257 for inter-node communication (i.e., working as a cluster) and for the TPC-C workload to connect to nodes
  • 8080 for exposing your DB Console

Create inbound rules for your security group:

Inter-node and TPCC-to-node communication

Field Recommended Value
Type Custom TCP Rule
Protocol TCP
Port Range 26257
Source The name of your security group (e.g., sg-07ab277a)

DB Console

Field Recommended Value
Type Custom TCP Rule
Protocol TCP
Port Range 8080
Source Your network's IP ranges

Step 2. Start CockroachDB

Warning:

The --insecure flag used in this tutorial is intended for non-production testing only. To run CockroachDB in production, use a secure cluster instead.

  1. SSH to the first VM where you want to run a CockroachDB node.

  2. Visit Releases to download and CockroachDB for Linux. Select the architecture of the VM, either Intel or ARM. Releases are rolled out gradually, so the latest version may not yet be available.

  3. Extract the binary you downloaded, then optionally copy it into a location in your PATH. If you choose to copy it into a system directory, you may need to use sudo.

  4. Start CockroachDB using the cockroach start command:

    icon/buttons/copy
    cockroach start \
    --insecure \
    --advertise-addr=<node1 internal address> \
    --join=<node1 internal address>,<node2 internal address>,<node3 internal address> \
    --cache=.25 \
    --locality=rack=0


    Each node will start with a locality that includes an artificial "rack number" (e.g., --locality=rack=0). Use 81 racks for 81 nodes so that 1 node will be assigned to each rack.

  5. Repeat these steps for the other 80 VMs for CockroachDB nodes. Each time, be sure to:

    • Adjust the --advertise-addr flag.
    • Set the --locality flag to the appropriate "rack number".
  6. On any of the VMs with the cockroach binary, run the one-time cockroach init command to join the first nodes into a cluster:

    icon/buttons/copy
    cockroach init --insecure --host=<address of any node on --join list>


Step 3. Configure the cluster

You'll be importing a large TPC-C data set. To speed that up, you can temporarily disable replication and tweak some cluster settings. You'll also need to enable the Enterprise license you requested earlier.

  1. SSH to any VM with the cockroach binary.

  2. Launch the built-in SQL shell:

    icon/buttons/copy
    $ cockroach sql --insecure --host=<address of any node>

  3. Adjust some cluster settings:

    icon/buttons/copy
    SET CLUSTER SETTING kv.dist_sender.concurrency_limit = 2016;
    SET CLUSTER SETTING kv.snapshot_rebalance.max_rate = '256 MiB';
    SET CLUSTER SETTING sql.stats.automatic_collection.enabled = false;
    SET CLUSTER SETTING schemachanger.backfiller.max_buffer_size = '5 GiB';
    SET CLUSTER SETTING rocksdb.min_wal_sync_interval = '500us';
    SET CLUSTER SETTING kv.range_merge.queue_enabled = false

  4. Change the default GC TTL to the following value:

    icon/buttons/copy
    ALTER RANGE default CONFIGURE ZONE USING gc.ttlseconds = 600;

  5. Enable the trial license you requested earlier:

    icon/buttons/copy
    > SET CLUSTER SETTING cluster.organization = '<your organization>';

    icon/buttons/copy
    > SET CLUSTER SETTING enterprise.license = '<your license key>';

  6. Exit the SQL shell:

    icon/buttons/copy
    > \q


Step 4. Import the TPC-C dataset

CockroachDB comes with a number of built-in workloads for simulating client traffic. This step features CockroachDB's version of the TPC-C workload.

  1. SSH to the VM where you want to run TPC-C.

  2. Download the CockroachDB archive for Linux, extract the binary, and copy it into the PATH:

    icon/buttons/copy
    $ curl https://binaries.cockroachdb.com/cockroach-v24.2.4.linux-amd64.tgz \
    | tar -xz

    icon/buttons/copy
    $ cp -i cockroach-v24.2.4.linux-amd64/cockroach /usr/local/bin/


    If you get a permissions error, prefix the command with sudo.

  3. Import the TPC-C dataset:

    icon/buttons/copy
    $ cockroach workload fixtures import tpcc \
    --partitions=81 \
    --warehouses=140000 \
    --replicate-static-columns \
    --partition-strategy=leases \
    'postgres://root@<address of any CockroachDB node>:26257?sslmode=disable'


    This will load 11.2 TB of data for 140,000 "warehouses". This can take up to 8 hours to complete.

    You can monitor progress on the Jobs screen of the DB Console. Open the DB Console by pointing a browser to the address in the admin field in the standard output of any node on startup.

Step 5. Partition the database

  1. Partition your database to divide all of the TPC-C tables and indexes into 81 partitions, one per rack, and then use zone configurations to pin those partitions to a particular rack.

  2. Wait for up-replication and partitioning to finish. You will know when they have finished because both the number of lease transfers and snapshots will go down to 0 and stay there. This will likely take 10s of minutes.

    • To monitor the number of lease transfers, open the DB Console, select the Replication dashboard, hover over the Range Operations graph, and check the Lease Transfers data point.
    • To check the number of snapshots, open the DB Console, select the Replication dashboard, and hover over the Snapshots graph.

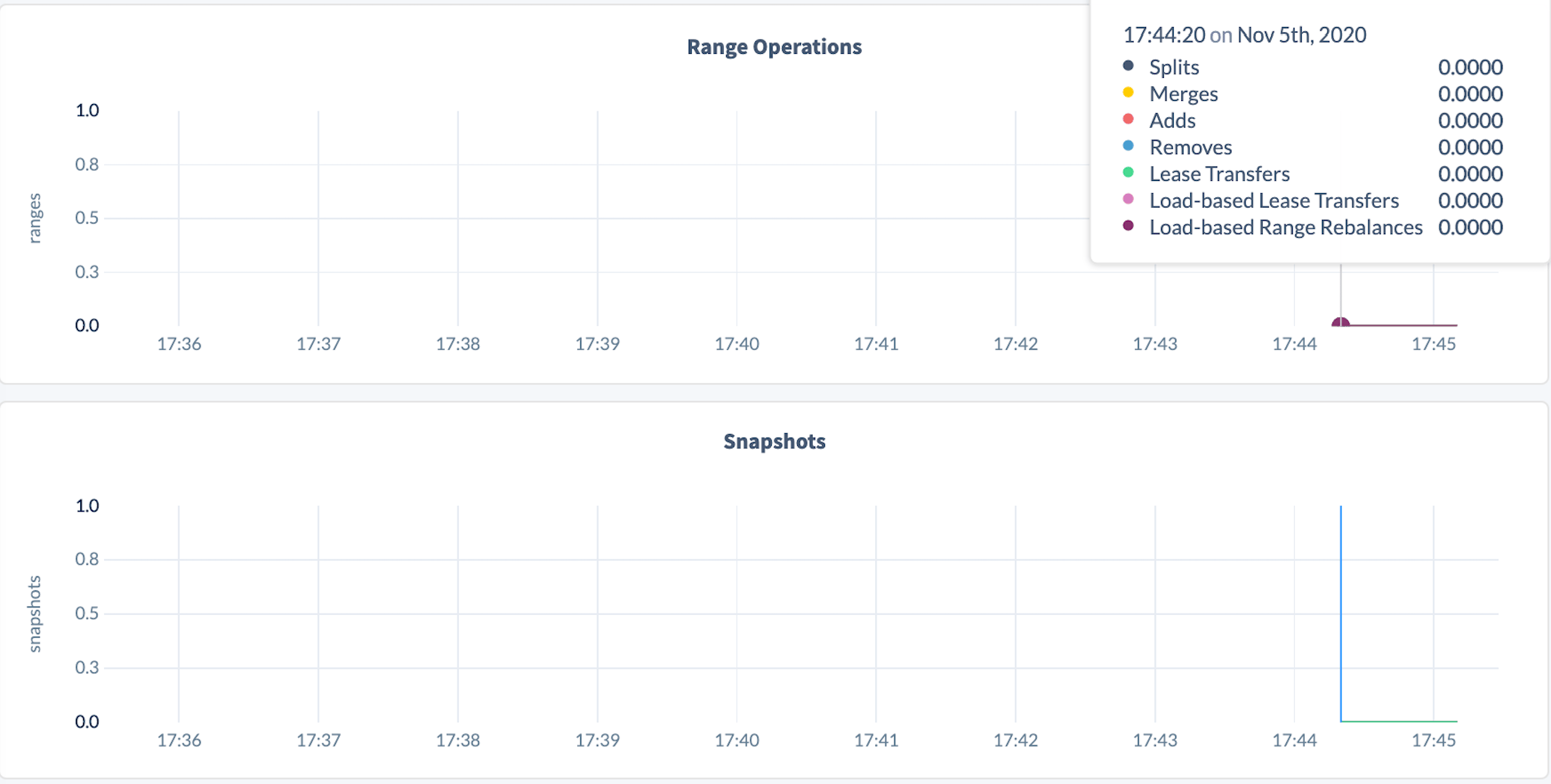

    TPC-C 140k replication and partitioning dashboards

Step 7. Allocate partitions

Before running the benchmark, it's important to allocate partitions to workload binaries properly to ensure that the cluster is balanced.

  1. Create an addrs file containing connection strings to all 81 CockroachDB nodes:

    postgres://root@<node 1 internal address>:26257?sslmode=disable postgres://root@<node 2 internal address>:26257?sslmode=disable postgres://root@<node 3 internal address>:26257?sslmode=disable postgres://root@<node 4 internal address>:26257?sslmode=disable ...

  2. Upload the addrs file to the 5 VMs with the workload binary:

    icon/buttons/copy
    $ scp addrs <username>@<workload instance 1 address>:.

    icon/buttons/copy
    $ scp addrs <username>@<workload instance 2 address>:.

    icon/buttons/copy
    $ scp addrs <username>@<workload instance 3 address>:.

    icon/buttons/copy
    $ scp addrs <username>@<workload instance 4 address>:.

    icon/buttons/copy
    $ scp addrs <username>@<workload instance 5 address>:.

  3. SSH to each VM with workload and allocate partitions:

    icon/buttons/copy
    ulimit -n 500000 && cockroach workload run tpcc --partitions=81 \
    --warehouses=140000 \
    --partition-affinity=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 \
    --ramp=30m \
    --duration=1ms \
    --histograms=workload1.histogram.ndjson \
    $(cat addrs)

    icon/buttons/copy
    ulimit -n 500000 && cockroach workload run tpcc \
    --partitions 81 \
    --warehouses 140000 \
    --partition-affinity=17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32 \
    --ramp=30m \
    --duration=1ms \
    --histograms=workload2.histogram.ndjson \
    $(cat addrs)

    icon/buttons/copy
    ulimit -n 500000 && cockroach workload run tpcc \
    --partitions=81 \
    --warehouses=140000 \
    --partition-affinity=33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48 \
    --ramp=30m \
    --duration=1ms \
    --histograms=workload3.histogram.ndjson \
    $(cat addrs)

    icon/buttons/copy
    ulimit -n 500000 && cockroach workload run tpcc \
    --partitions=81 \
    --warehouses=140000 \
    --partition-affinity=49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64 \
    --ramp=30m \
    --duration=1ms \
    --histograms=workload4.histogram.ndjson \
    $(cat addrs)

    icon/buttons/copy
    ulimit -n 500000 && cockroach workload run tpcc \
    --partitions=81 \
    --warehouses=140000 \
    --partition-affinity=65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80 \
    --ramp=30m \
    --duration=1ms \
    --histograms=workload5.histogram.ndjson \
    $(cat addrs)


Step 8. Run the benchmark

Once the allocations finish, run TPC-C for 30 minutes on each VM with workload:

Note:

It is critical to run the benchmark from the workload nodes in parallel, so start them as simultaneously as possible.

icon/buttons/copy
ulimit -n 500000 && cockroach workload run tpcc \
--partitions=81 \
--warehouses=140000 \
--partition-affinity=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 \
--ramp=4m \
--duration=30m \
--histograms=workload1.histogram.ndjson \
$(cat addrs)
icon/buttons/copy
ulimit -n 500000 && cockroach workload run tpcc \
--partitions=81 \
--warehouses=140000 \
--partition-affinity=17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32 \
--ramp=4m \
--duration=30m \
--histograms=workload2.histogram.ndjson \
$(cat addrs)
icon/buttons/copy
ulimit -n 500000 && cockroach workload run tpcc \
--partitions=81 \
--warehouses=140000 \
--partition-affinity=33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48 \
--ramp=4m \
--duration=30m \
--histograms=workload3.histogram.ndjson \
$(cat addrs)
icon/buttons/copy
ulimit -n 500000 && cockroach workload run tpcc \
--partitions=81 \
--warehouses=140000 \
--partition-affinity=49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64 \
--ramp=4m \
--duration=30m \
--histograms=workload4.histogram.ndjson \
$(cat addrs)
icon/buttons/copy
ulimit -n 500000 && cockroach workload run tpcc \
--partition=81 \
--warehouses=140000 \
--partition-affinity=65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80 \
--ramp=4m \
--duration=30m \
--histograms=workload5.histogram.ndjson \
$(cat addrs)

Step 9. Interpret the results

  1. Collect the result files from each VM with workload:

    icon/buttons/copy
    $ scp <username>@<workload instance 1 address>:workload1.histogram.ndjson .

    icon/buttons/copy
    $ scp <username>@<workload instance 2 address>:workload2.histogram.ndjson .

    icon/buttons/copy
    $ scp <username>@<workload instance 3 address>:workload3.histogram.ndjson .

    icon/buttons/copy
    $ scp <username>@<workload instance 4 address>:workload4.histogram.ndjson .

    icon/buttons/copy
    $ scp <username>@<workload instance 5 address>:workload5.histogram.ndjson .

  2. Upload the result files to one of the VMs with the workload binary:

    Note:

    The following commands assume you're uploading to the VM with the workload1.histogram.ndjson file.

    icon/buttons/copy
    $ scp workload2.histogram.ndjson <username>@<workload instance 2 address>:.

    icon/buttons/copy
    $ scp workload3.histogram.ndjson <username>@<workload instance 3 address>:.

    icon/buttons/copy
    $ scp workload4.histogram.ndjson <username>@<workload instance 4 address>:.

    icon/buttons/copy
    $ scp workload5.histogram.ndjson <username>@<workload instance 5 address>:.

  3. SSH to the VM where you uploaded the results files.

  4. Run the workload debug tpcc-merge-results command to synthesize the results:

    icon/buttons/copy
    cockroach workload debug tpcc-merge-results \
    --warehouses=140000 \
    workload*.histogram.ndjson


    You'll should see results similar to the following, with 1.68M tpmC with 140,000 warehouses, resulting in an efficiency score of 95%:

    Duration: 30m1., Warehouses: 140000, Efficiency: 95.45, tpmC: 1684437.21
    _elapsed___ops/sec(cum)__p50(ms)__p90(ms)__p95(ms)__p99(ms)_pMax(ms)
    1801.1s      2824.0     302.0   1140.9   2415.9   9126.8  55834.6 delivery
    1801.1s     28074.0     402.7   1409.3   2684.4   9126.8  45097.2 newOrder
    1801.1s      2826.0       6.8     62.9    125.8   4160.7  33286.0 orderStatus
    1801.1s     28237.4     251.7   1006.6   2415.9  15032.4 103079.2 payment
    1801.1s      2823.5      39.8    469.8    906.0   5905.6  38654.7 stockLevel
