ST_Disjoint

On this page Carat arrow pointing down
Warning:
CockroachDB v21.1 is no longer supported as of November 18, 2022. For more details, refer to the Release Support Policy.

Given two shapes A and B, ST_Disjoint(A, B) returns true if the shapes do not share any of the same space -- that is, if no point in the set that comprises A is also a member of the set of points that make up B.

ST_Disjoint works on the following spatial data types:

Note:

ST_Disjoint does not make use of spatial indexes.

Note:

This function is the inverse of ST_Intersects.

Examples

Note:

The screenshots in these examples were generated using geojson.io, but they are designed to showcase the shapes, not the map. Representing GEOMETRY data in GeoJSON can lead to unexpected results if using geometries with SRIDs other than 4326 (as shown below).

True

In this example, ST_Disjoint returns true because:

  • No Point in the set that comprises Polygon A is also a member of the set of points that make up Polygon B.
icon/buttons/copy
SELECT st_disjoint(st_geomfromtext('SRID=4326;POLYGON((-87.906471 43.038902, -95.992775 36.153980, -75.704722 36.076944, -87.906471 43.038902), (-87.623177 41.881832, -90.199402 38.627003, -82.446732 38.413651, -87.623177 41.881832))'), st_geomfromtext('SRID=4326;POLYGON((-87.356934 41.595161, -84.512016 39.103119, -86.529167 39.162222, -87.356934 41.595161))'));
  st_disjoint
---------------
     true

(1 row)

ST_Disjoint - true

False

In this example, ST_Disjoint returns false because:

  • Many Points in the set that comprises Polygon A are also members of the set of points that make up Polygon B.
icon/buttons/copy
SELECT st_disjoint(st_geomfromtext('SRID=4326;POLYGON((-87.906471 43.038902, -95.992775 36.153980, -75.704722 36.076944, -87.906471 43.038902))'), st_geomfromtext('SRID=4326;POLYGON((-84.191605 39.758949, -75.165222 39.952583, -78.878738 42.880230, -84.191605 39.758949))'));
  st_disjoint
---------------
     false
(1 row)

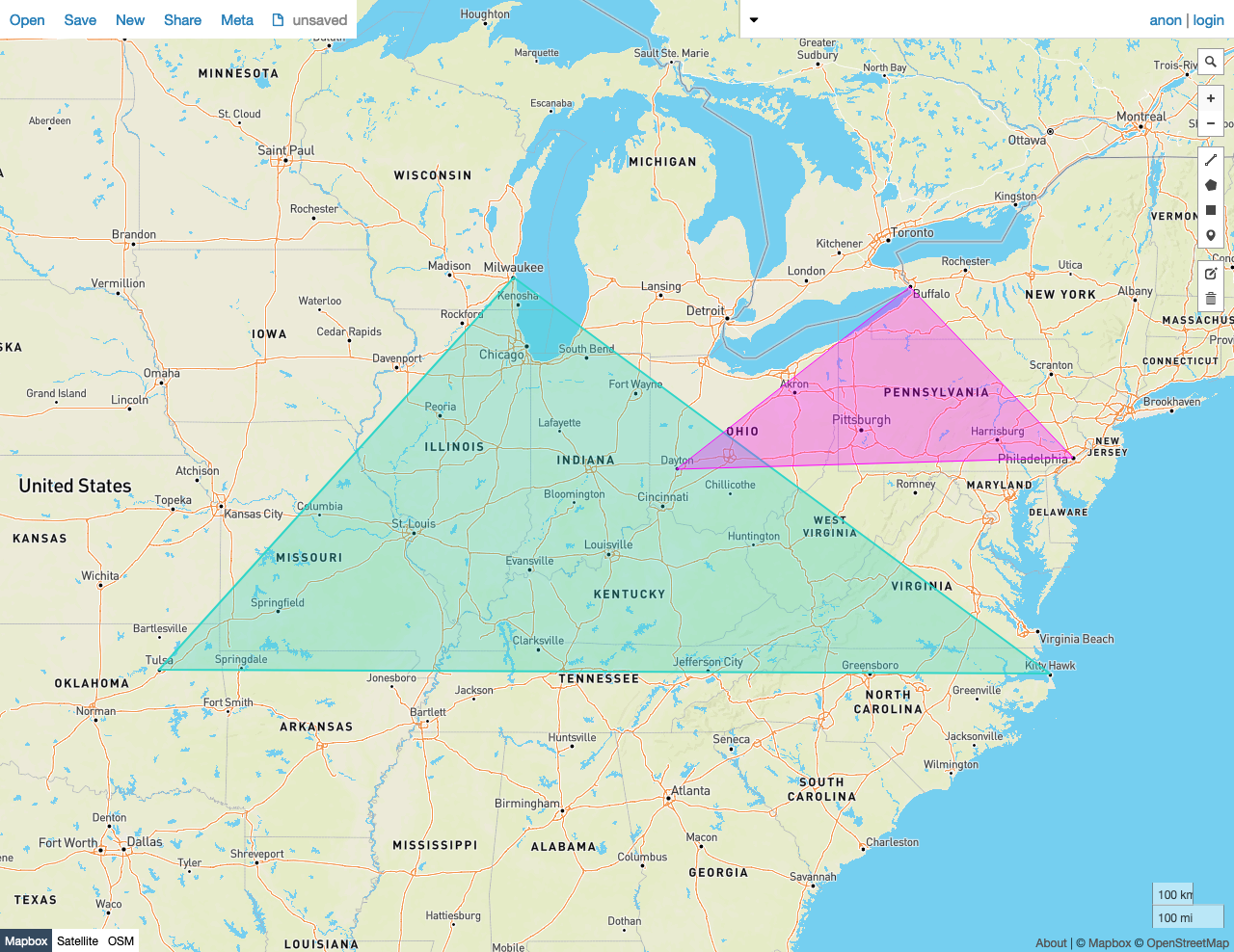

ST_Disjoint - false
